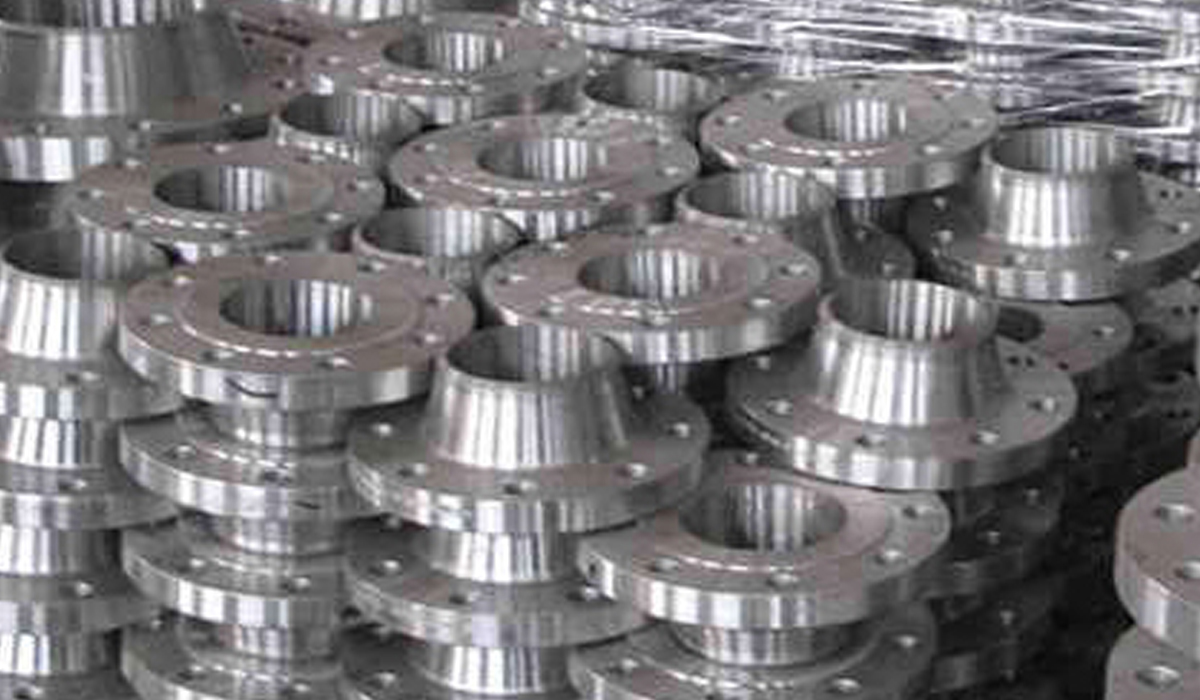

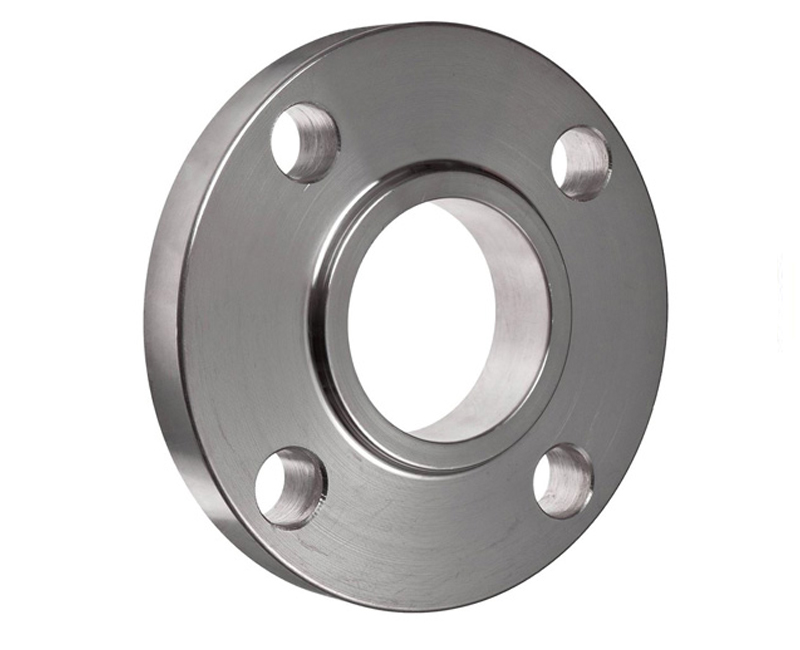

Vessco Overseas is Leading Manufacturer of Incoloy 825 Flanges, which has impervious to an assortment of oxidizing substances, for example, nitric corrosive and nitrates. Incoloy 825 Slip On Flanges are often used in pollution control equipment, oil well and gas gathering pipes, even as clad steel pipe - where resistance to stress cracking or general corrosion to a range of reducing or oxidising acids is required. Incoloy WERKSTOFF NR. 2.4858 Weld Neck Flange is additionally utilized as a part of Marine exhaust systems, Sulphuric corrosive channeling and vessels. Incoloy 825 Blind Flanges is too utilized as a part of concoction preparing, corrosive creation, atomic fuel reprocessing, oil and gas well channeling, propeller shafts etc.

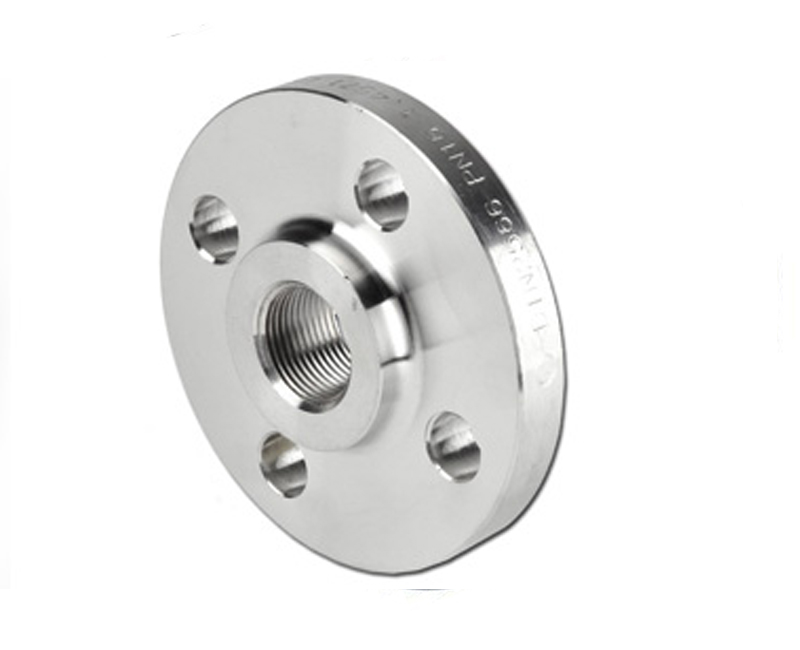

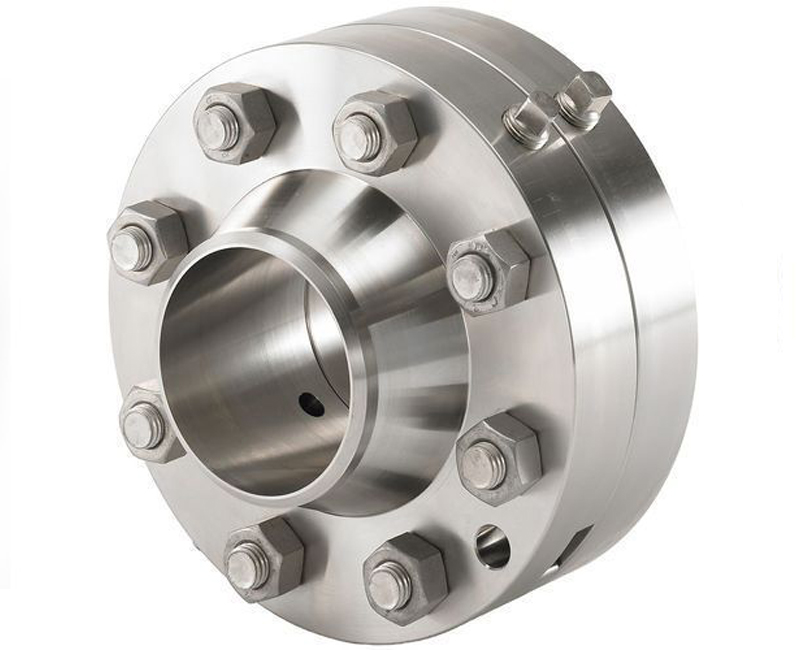

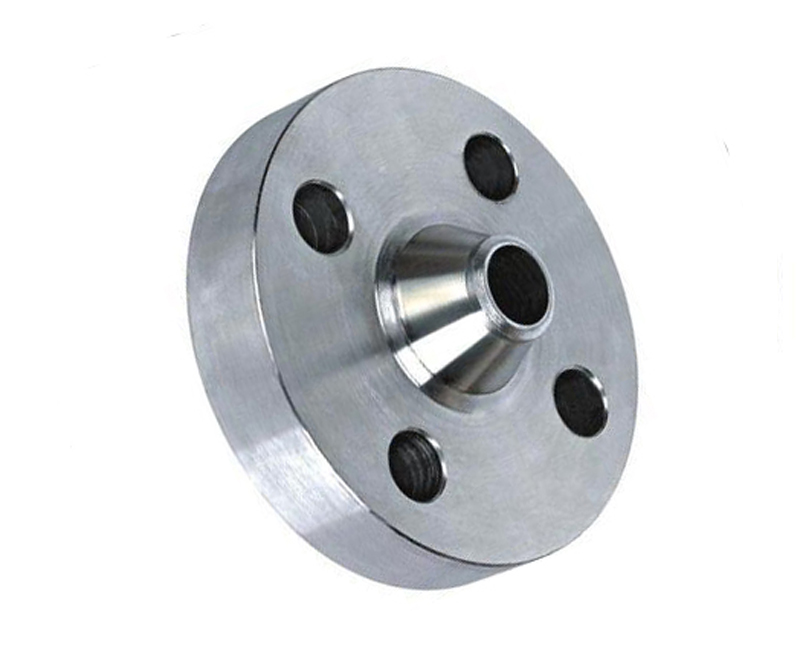

Incoloy 825 Orifice Flanges is particularly impervious to sulphuric and phosphoric acids, offering remarkable execution in seawater. Composite 825 Pipe Flanges is settled toughened at the plant to oppose intergranular consumption as-welded. Incoloy 825 Threaded Flanges has great protection from stretch erosion breaking and agreeable protection from restricted assault like setting and crevice consumption. Incoloy WERKSTOFF NR. 2.4858 Reducing Flanges additionally has abnormal state of protection from assortment of oxidizing substances, for example, nitric corrosive, nitrates, and oxidizing salt.
Specifications |
||
| Dimensions | : | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Specifications | : | ASTM B564 / ASME SB 564 |
| Standards |
: | ASTM, ASME Flanges, ANSI Flanges, DIN Flanges, EN Flanges, BS Flanges etc. |
| Class | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size | : | 1 / 2" to 36″ |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | ЭП703 | NFE30C20DUM | NCF 825 | NA 16 | NiCr21Mo | XH38BT |
| Grade | Ni | Cr | Fe | Mb | Ti | Cu | Mn | C | S | Al | Si |
| Incoloy 825 | 38.0 – 46.0 | 19.5 – 23.5 | 22.0 min | 2.5 – 3.5 | 0.6 – 1.2 | 1.5 – 3.0 | 1.0 max | 0.05 max | 0.03 max | 0.2 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
