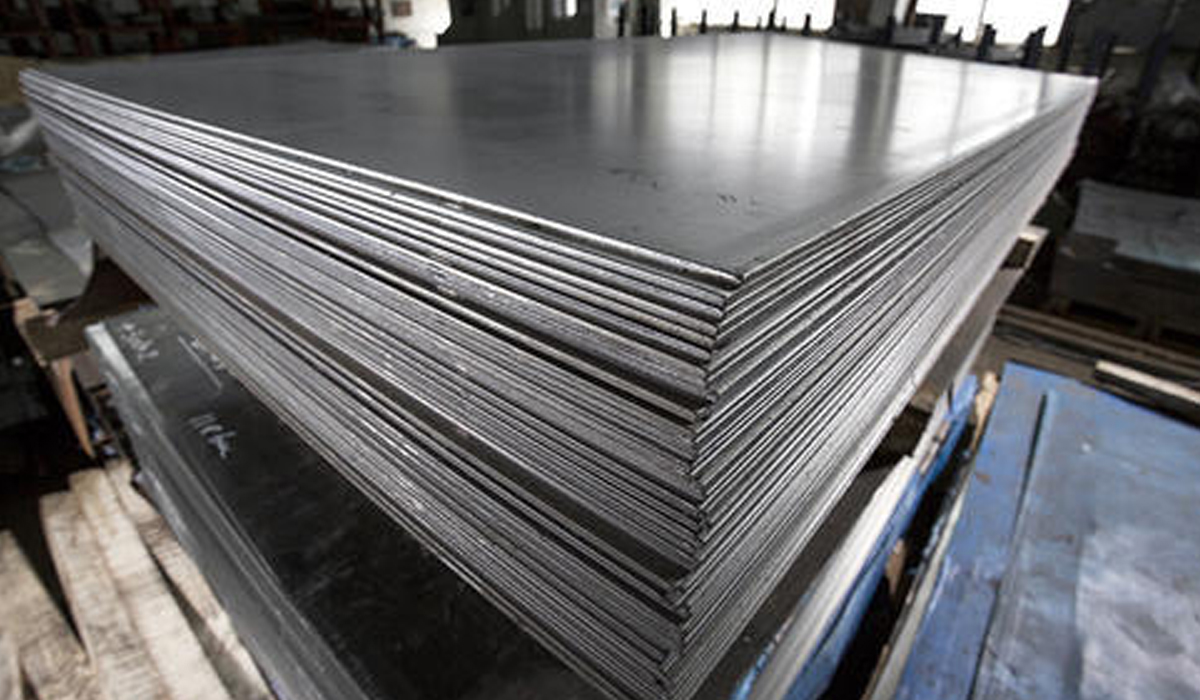

Vessco Overseas is one of the Leading Manufacturer, Suppliers of Stainless Steel 904L Plates. ASME SB625 904L Polished Plates has Good resistance to pitting and crevice corrosion, very good resistance to stress corrosion cracking, good resistance to intergranular corrosion, good formability and weldability, maximum service temperatures of 450 degree C (824 degree F). ASTM B625 904L Stainless Steel Hot Rolled Plates is a completely austenic low-carbon assortment of treated steel with added substances of molybdenum and copper. The high nickel and chromium substance of these SStainless Steel 904L Hexagonal Wire make it erosion safe is both oxidizing and lessening conditions.
Stainless Steel 904L Fencing Wire is expected for use under serious erosion conditions inside the process industry. Grade Stainless Steel 904L Cold Rolled Plates have excellent resistance to warm seawater and chloride attack. Regular Applications of Stainless Steel 904L Shim Sheet is Seawater cooling hardware, Chemical handling for sulphuric, phosphoric and acidic acids, Gas washing, Condenser tubes, Control and instrumentation, Heat exchangers and that's only the tip of the iceberg. Stainless Steel 904L Woven Wire is also used in utility scrubber assemblies, acid and fertilizer production equipment. SS WERKSTOFF NR. 1.4539 Chequered Plate is as well used in Marine environment, Chemical industry, Pharmaceutical industry, Food industry and so on.
Specifications |
||
| Specifications | : | ASTM B625 / ASME SB625 |
| Dimensions | : | ASTM, ASME and API |
| Length |
: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|
| 904L | Min | - | - | - | - | - | 19.0 | 4.00 | 23.00 | 1.00 |
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 2.00 | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 904L | 490 | 220 | 35 | 70-90 typical | - |
